SmartForm is a Laminated Veneer Lumber (LVL) Engineered Wood Product used in concrete formwork support structures such as joists, bearers, walers and soldiers in conventional soffit formwork and vertical forms for concrete slab pouring.

Quality Assured

SmartForm is JAZ-ANZ certified by SAI-Global.  It is manufactured to meet the requirements of AS/NZS 4357 – Structural Laminated Veneer Lumber.

Easy Identification

SmartForm is produced in industry standard sizes of 150 x 75mm, 95 x 63mm and 95 x 45mm. Painted safety orange for easy visual identification, each piece of SmartForm is branded at least once with the SmartForm branding, compliant with AS/NZS 4357 structural LVL standard for identification and evidence of compliance with manufacturing control standards and product quality certification.  It is also sealed with a water resistant coating to increase its durability, providing the user with extended lifecycles and superior performance.

Design Support

Please refer to the SmartForm Design Guide for the most common formwork applications.  For applications, service classes not covered in this Design Guide and/or general product enquiries about SmartForm, please contact SmartFrame technical support on 1300 668 690 or at smartdata@tilling.com.au



Specifications

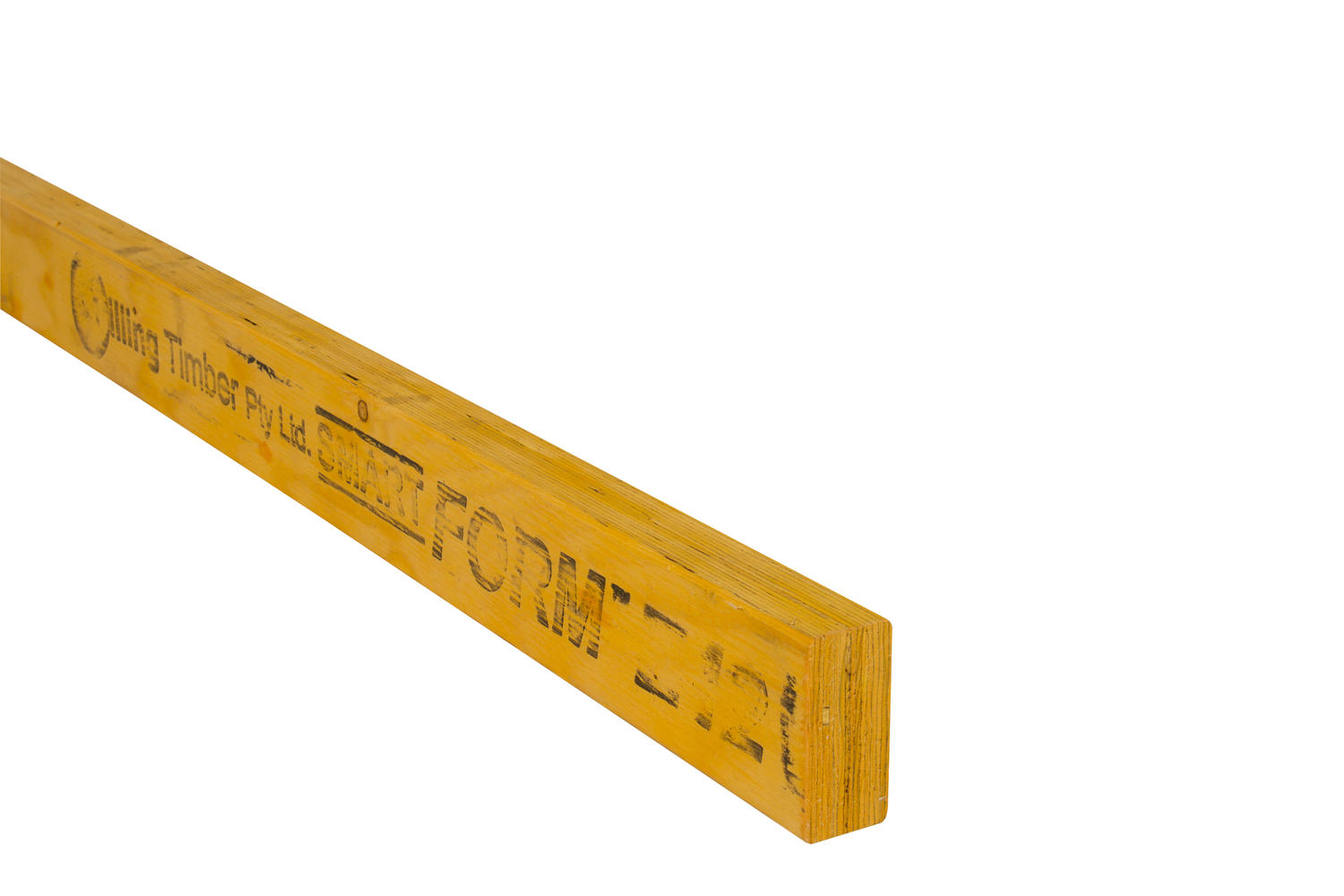

SF9545J95 x 45 mm SmartForm

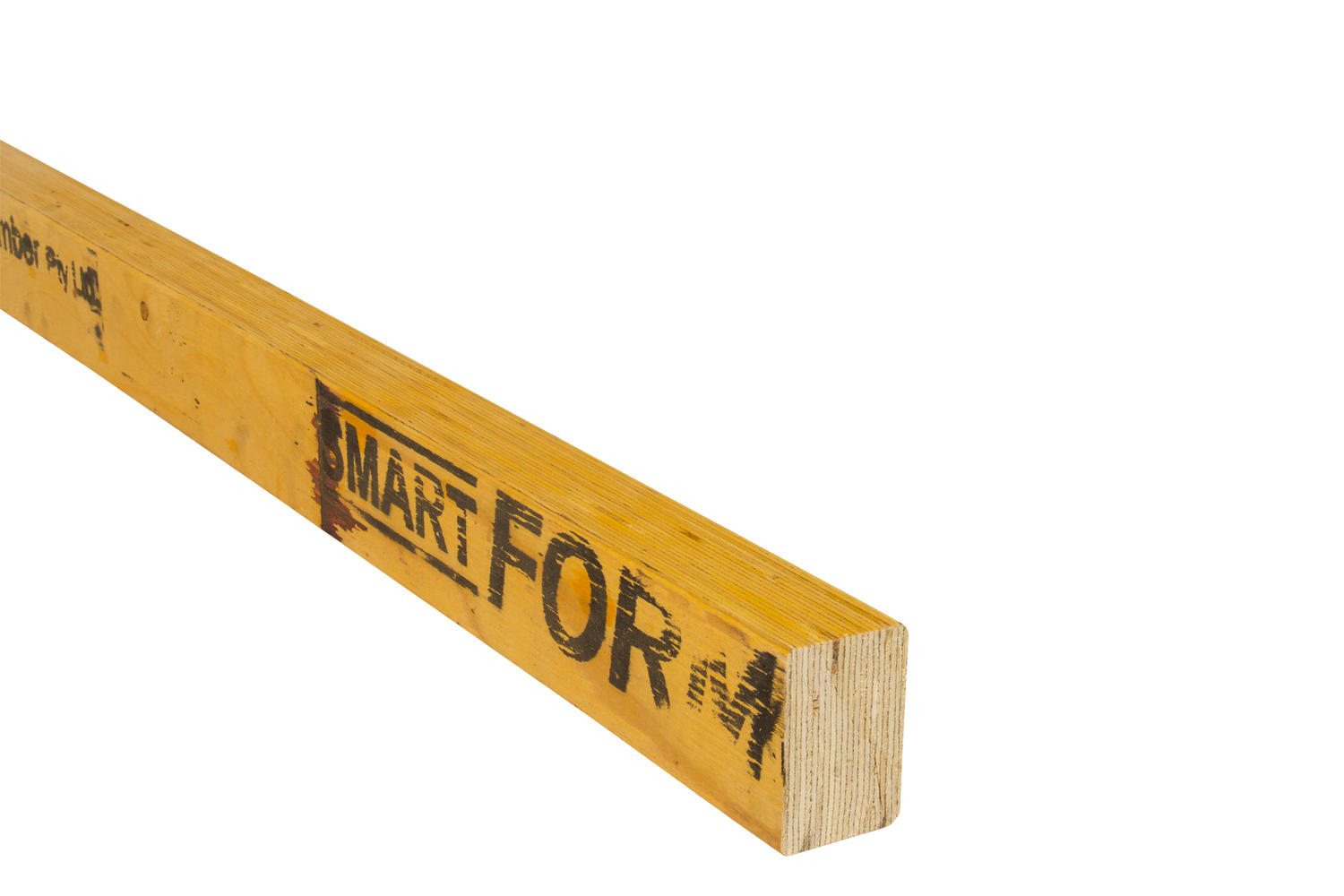

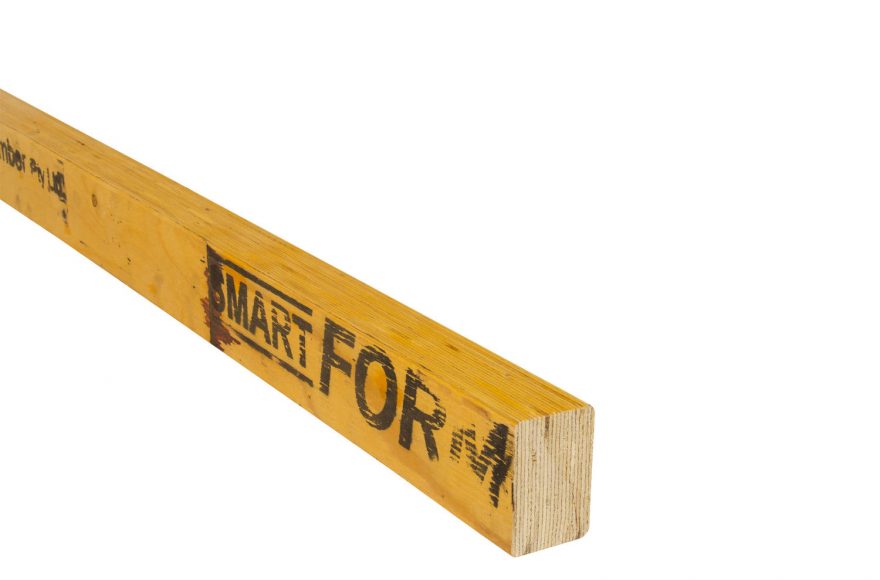

SF9563J95 x 63 mm SmartForm
SF13075J130 x 75 mm SmartForm - ONLY AVAILABLE IN WA

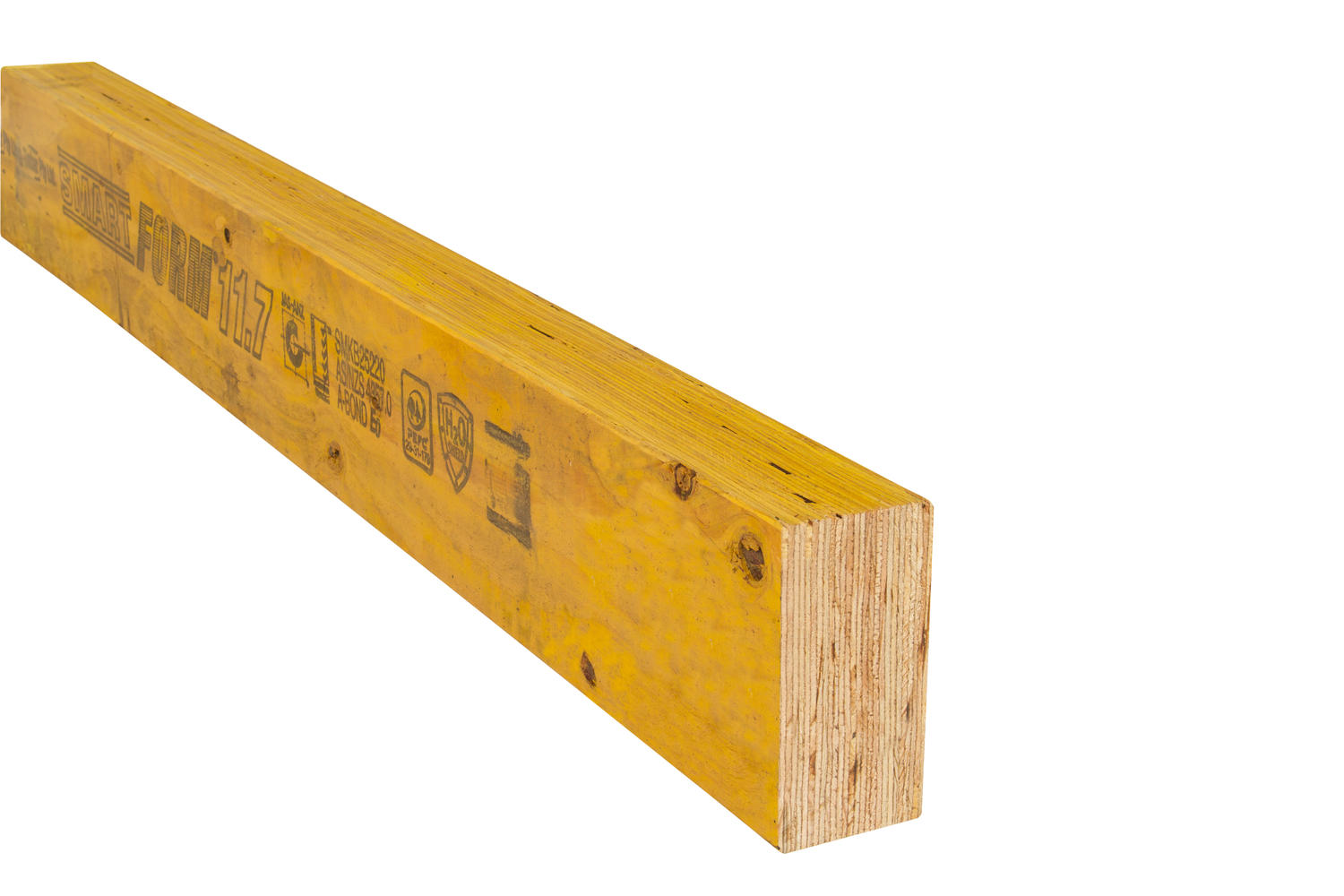

SF15075J150 x 75 mm SmartForm

SmartForm Attachments
